Automatic Poultry Farm Drinking System For Broiler Chicken Shed

Automatic Feeding And Drinking System For Broiler Chicken Shed

Drinking System Introduction

	Drinking Nipple PP   outside and stainless steel inside Water-saving,reduce           illness, labor-saving
	Drip Cup   Made up of best plastic,so it's light in  weight  and   long   life   span   in usageSave    water,convenient    to dismantle and use
	Doser   Dosatron  medicator  imported  from France,ISO9001-2000       certificate, don't  need  electric,drive  by  water press.
	Pressure regulator   stabilize the water level and enables enough water supplies;indicating tube is high in transparence and    tenacity,so it's easy to observe    the water levelreasonable design    makes it much easier to dissemble
	Hanging system    Hanging system include winch,pulley,S hook,steel wire and so on. Max lifting weight:680kg.

Drinking System Introduction

•By changing the direction of the handle of the ball value, realizing the normal water supply, irrigation, adding three functions.

• The front end component, is an important link in the drinking water system, such as pressure control, water control, ushing, dosing etc, should be adjusted in strict accordance with the instructions for using.

• The ushing has unique design, ensures the ushing when sufcient water.

Advantage of the System

Quick fitting: Convenient assembly and disassembly, good sealing. Extended design, prevent the ushing water which is caused by excessive drinking water leakage phenomenon between the units.

Drinking nipple: Valve type drinking nipples, using double seal design, seal more reliable. The shell is made of anti-corrosive materials, the internal structure of the international top stainless steel, precision instrument processing, horizontal, 360 degree rotation.

Inside Equipment for Ground Feeding

1.Main Feeding line
It is transferred to the feeders by delivery system when feed fill up base hopper. The base hopper with qualities of large capacity,scientific design,firm structure,low cost and long life span.
2.Broiler Pan Feeding System
Feed pan is the core of feeding system. The pan feeding system for broilers is solid and reliable through the application of high quality materials and components.easy access for birds from day one to flow out.

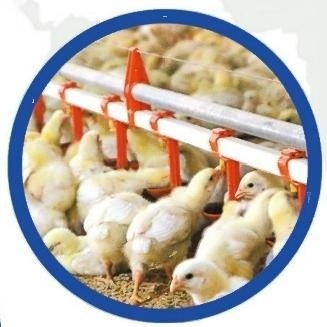

3.Nipple Drinking System
Nipple drinking system provides flesh and clean water for birds,which is very vital to let the birds have a good growing performance. Meanwhile,nipple drinking system can make the poultry house environment better. The nipple drinking system has been become the necessary equipment for stander poultry feeding.
4.Environment Control System
Based on the windows 2000 of the automatic environmental monitoring network system of poultry house. You can easily achieve centralized monitoring of environmental conditions within a certain range.

Our One-Stop Service

1. Make suitable design plan and detailed approval drawings of steel structure building according to the land layout area and purposes of building by Tekla, PKPM, 3D3S.
2. Steel structure buildings consultation service.
3. Budget always on deck for our client
4. Meticulous Fabrication,with great precision.
5. Erection & installation of steel structure building. Our technician and skilled workers can be dispatched on site to guide or erection process.
6. Transportation & delivery per your requirements

Package & Shipping

Product Packaging:

All components are packed in bundles and secured with steel straps.

The main frame is packed in a container or shipped as a single package.

Wall and roof panels are packed separately to avoid damage during shipping.

All necessary fittings and accessories are included in the package.

Shipping:

The Steel Structure Poultry House will be shipped by sea.

Delivery time will vary based on the destination and shipping method.

Customers will be provided with tracking information once the product has shipped.
