4 Tiers Broiler Chicken Battery Cage
, Automated Broiler Chicken Battery Cage
, H Type Automated Battery Cage System
όνομα: |
Κλουβί μπαταρίας για κοτόπουλο |
Σύστημα τροφοδοσίας: |
Αυτοματοποιημένο σύστημα τροφοδοσίας |
Προϊόντα: |
Πορτοκαλί, κόκκινο, κίτρινο ή προσαρμοσμένο |
Υλικό: |
Χάλυβας από ζεστό χαλκό |
Υλικό σωλήνων: |
Καυτός γαλβανισμένος χάλυβας |
Πιστοποίηση: |
ISO9001,OHSAS18001,Product Patents |
Σειρά: |
Τρία στρώματα, τέσσερα στρώματα, πέντε στρώματα, έξι στρώματα, οκτώ στρώματα, εννέα στρώματα, δέκα σ |
Τύποι: |
Τύπος Α, τύπου H (κλουβί με μπαταρία) |
slat πάτωμα: |
Πλαστικό PP |
Σύστημα θηλών: |
16 θηλές/4m/μονάδα |
Φανατικοί: |
36' κώνος, 50' κώνος ή προσαρμοσμένο |
δροσίζοντας μαξιλάρι: |
1500*600*150 ή εξατομικευμένο |
Ελέγχος του περιβάλλοντος: |
Περιλαμβάνει κλιματικό ελεγκτή, αισθητήρα θερμοκρασίας, αισθητήρα υγρασίας κλπ. |
Φωτισμός: |
Δοκιμαστικός λαμπτήρας εξοικονόμησης ενέργειας LED |
Σύστημα θέρμανσης: |
Πετρέλαιο ως καύσιμο |
Άλλα αξεσουάρ: |
Παρέχεται |
Broiler Poultry Farming Equipment H Type Automatic System Battery Broiler Chicken Cage
Steel Structure Poultry Shed
| It is suitable for most of the poultry houses, please contact us if it doesn’t meet your needs. |
| Building Dimension |
Customized according to raising needs |
| Roof Live Load |
In 120kg/Sqm (color steel plate surround) |
| Wind Resistance |
8 Level
|
| Service Life |
Up to 50 years |
| Applicable Environment Temperature |
Applicable temperature: -10°C+50°C |
| Installation Time |
30-60 days |
| Certification |
ISO9001, CE, GB |
| After-sale Service |
Online technical support, on-site installation |
| Solutions |
Poultry house total solutions |
A Type&H Type Cages
|
A type cage
• Adopt hot-dip galvanization technology to ensure the service life of 15-20 years.
• Long service life, high stability, and low cost of the equipment.
• Semi-Automatic drinking and manure cleaning can help to save energy and improve
the working efficiency.
• Well ventilation, comfortable environment, easy to operate.
• Low proportion between forage and egg, low production costs. Applicable to manual or semi-automatic, open chicken house raising. The breeding quantity is no more than 20k layers, recommended to use.
•It also helps to save operator's time and labor cost, and improve raising performance.
|

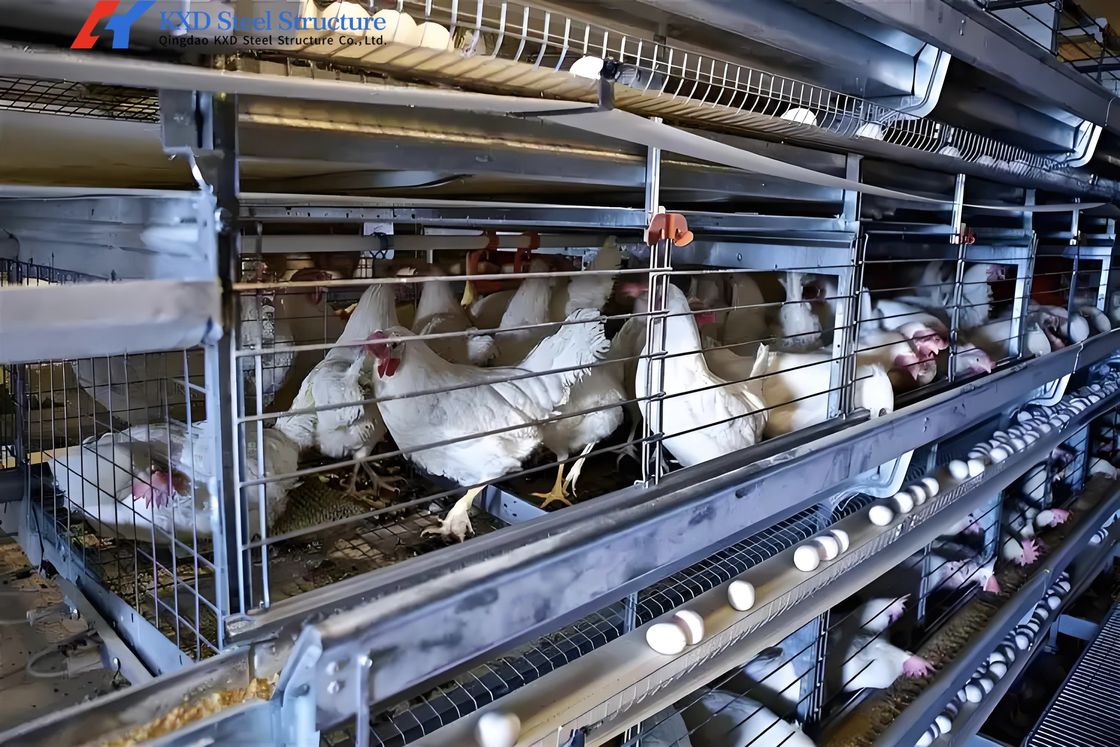

H type cage
• Adopt hot-dip galvanization technology to ensure the service life of 20-25 years.
• H-type cage is the room saver, can reach more breeding quantity.
• Automatic drinking, feeding, manure cleaning and egg collecting can greatly save energy and improve the working efficiency.
• Long service life, high stability, and high output rate of return and comprehensive rate.
• High degree of mechanization, high degree of hygiene in the chicken house, low irritating smell, and clean feces disposal in place. H type cage can meet the needs of large-scale farming.
|
Battery Cages for Broilers
4 tiers Battery Cage:2 to 4 times higher capacity compared to floor system,higher ulilization of space reduced energy costs for heating or cooling.
Steel Material
Q235 High Quality Steel Material from Brand Manufacturers: 275g/m² Hot-dip Galvanized Steel,stronger equipment with better corrosion resistance.
Numerical Control Process Technology:high precision, easy to install,operate smoothly.
Manure Cleaning System
Automatic Birds Harvesting System:automatic transport of broilers out of the house.
Belt Type Manure Cleaning System:daily manure removal to reduce ammonia emissions in the house to a minimum.
PP Floors
Pull-type Soft PP Floors:prevents breast blisters and promotes clean and healthy feet thus providing excellent hygienic . quick and efficient moving-out of the broilers.
Smart Environment Control System:more accurate smart control.
Smart Environment Control System
Smart Environment Control System:the easy-to-use smart environment control system guarantees ideal environment.
Spray Disinfection:simple cleaning and disinfection after the batch.
Automatic Feeding System:every chicken has adequate feed intake.
LED Lighting System
Dimmable LED Lighting:meet brightness needs in different ages.
110 birds/door:every chicken has adequate feed intake.Easy to observe the health of chickens.
496cm²/bird:smaller activity space, higher feed conversion.
Automatic Manure Cleaning System
PP conveyor belt with unique properties: high tensile strength, impact resistance, corrosion resistant, low-temperature resistant (can work in -50 degree centigrade), good toughness , low friction, which can adapt to various working environment abroad.
The Chain Feeding System
• Chain feeding is characterized by fast feeding, low noise and stable operation.
• The feeding is evenly distributed and the old feed will be renovated.
• Each layer of feeding line operates independently, not affected the chicken
feeding during the operation.
• The feeding line includes safety pins, and the motor is overloaded and cut to protect the motor.
• Stable and reliable operation and low maintenance requirements.
About Us
All of our KXD poultry sheds are ISO 9001-2015 certified. Any third-party inspection will be accepted, such as SGS, BV, TUV etc. We also welcome OEM and ODM orders. So far, we have exported to more than 1,500 projects over 130 countries and regions around the world and accumulated rich experience in the design, fabrication and supply of steel buildings, as well as the erection of steel buildings, architectural materials, electrical systems .You can talk to our customer service center about your sourcing requirements.
